IN-9 Bargraph Nixies – pt. 3

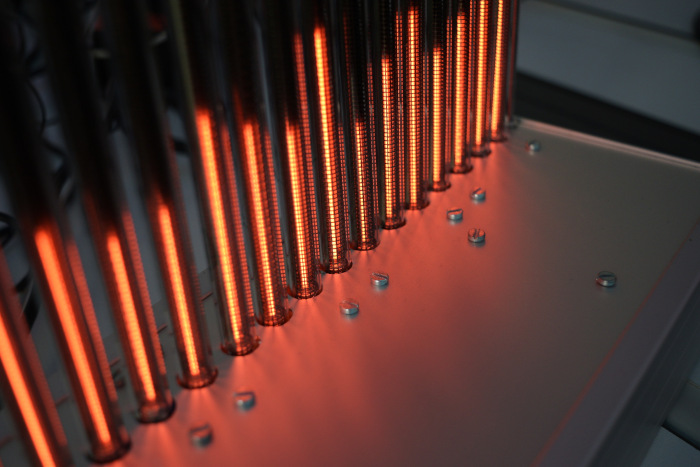

Completely assembled IN-9 bargraph nixie device

The Software

I was recently asked on Twitter how I managed to get 16 PWM channels out of an ATMega 168. This microcontroller only has 3 hardware PWM channels, so there’s a little trick involved using timer interrupts.

Here’s the timer setup routine, which is called at bootup:

void setup_timer() {
  TCCR0A |= (1 << WGM00) | (1 << WGM01);
  TCCR0B |= (1 << CS02) | (1 << WGM02);
  TIMSK0 |= (1 << TOIE0);
  OCR0A = 1;
}

Nothing magical so far: the three WGM bits are set, so that the timer is reset once the counter reaches the value in register OCRA, and then the timer overflow interrupt is fired. The CS bits are set so that the input of the timer is the main clock divided by 256. This frequency was chosen by experiment, timed so that the timer interrupt routine can comfortably execute and still allow for the main program to run in between timer interrupts. The timer overflow interrupt is enabled by setting TOIE0. Lastly, the output compare register OCR0A is preloaded with the value 1.

Here’s the next bit of code, the timer interrupt routine.

ISR(TIMER0_OVF_vect) {
  cli();
  pwm_bit();
  sei();
}

void pwm_bit() {
  static uint8_t index = 0;
  index = (index + 1) % 8;

  // Set timer value for the *next* bit (because OCR0A updates at BOTTOM)
  OCR0A = (0x01 << (index + 1) % 8) - 1;

  PORTB = bits_pb[index];
  PORTC = bits_pc[index];
  PORTD = bits_pd[index];
}

The interrupt handler itself just calls pwm_bit, and there the the interesting part happens. We’re using 8 bit PWM here, so we have an index that counts up from 0 to 7. First thing we do is update OCR0A for the next round. The formula calculates the new compare value so that the register cycles through the values 0, 1, 3, 7, 15, 31, 63, 127. This way, the timer interrupt does not fire at a constant rate, but at 1, 2, 4, … cycles (since the value 0 is also held in the timer counter register for one cycle).

Now we have the powers of two, i.e. the value of each individual bit, encoded in the length of time between timer interrupts - the least significant bit is worth one cycle, the next one two, and so on, until the last one which is worth 128 cycles. We just need to shift out the bits of each PWM channel to the corresponding output pins. The whole 16 channels do not fit on a single port of the AVR. In fact, because we also use the serial port of the ATMega, the 16 channels need to be spread out across three different ports. Another routine - we’ll have a look at it in a second - has already preloaded the PWM bits into three arrays of bytes.

Each array holds data for one port, laid out so that each byte contains the data to be emitted at a paricular time. For example, the byte in bits_pb[0] contains all the least significant bits of the PWM channels connected to PORTB. bits_pb[1] contains the next bits, and so on. bits_pb[7] consequently holds the most significant bits of the channels.

Of course, in this setup the PWM can switch multiple times per cycle. For example, here is what the output looks like for a value of 170, which conveniently is 10101010 in binary:

Graph of the PWM output of a value of 170: 0 for 1 cycle; 1 for 2 cycles, 0 for 4 cycles, 1 for 8 cycles, 0 for 16 cycles, 1 for 32 cycles, 0 for 64 cycles, 1 for 128 cycles.

The signal stays low for 1 cycle (least significant bit is 0), then goes high for 2 cycles, low again for three cycles, high for 4 cycles, and so on. So it is not a clean PWM signal with a fixed frequency, but it gets the job done, because the capacitors connected to the outputs take care of the smoothing. But even without smoothing it is usable: I’m using the same scheme for 3 PWM channels in the lys project, where the outputs of the ATMega are connected to MOSFETs driving the LEDs.

Now the last bit of the code is where the input is transformed to the bit patterns for the PWM. The input is an array of numbers in the range [0 .. 255]. Here’s the code that transforms it into the bit patterns for the ports:

void pwm_set(const uint8_t* val) {
  for (uint8_t bit_index = 0; bit_index < 8; bit_index++) {
    uint8_t mask = 1 << bit_index;

    // Values 0..5 to PORTC[0..5].
    for (uint8_t val_index = 0; val_index < 6; val_index++) {
      if (val[val_index] & mask)
        bits_pc[bit_index] |= (1 << val_index);
      else
        bits_pc[bit_index] &= ~(1 << val_index);
    }

    // Values 6..8 to PORTB[0..2].
    for (uint8_t val_index = 0; val_index < 3; val_index++) {
      if (val[val_index + 6] & mask)
        bits_pb[bit_index] |= (1 << val_index);
      else
        bits_pb[bit_index] &= ~(1 << val_index);
    }

    // Values 10..15 to PORTD[1..7].
    for (uint8_t val_index = 1; val_index < 8; val_index++) {
      if (val[val_index + 8] & mask)
        bits_pd[bit_index] |= (1 << val_index);
      else
        bits_pd[bit_index] &= ~(1 << val_index);
    }
  }
}

The outer for-loop shifts the 1 in the mask byte through all 8 bit positions. Then for each output port there is a for-loop, which iterates over the PWM channels connected to that particular port. If the masked bit in the input (val[val_index] & mask) is set, a 1 is written on the bit position of that channel (bits_p…[bit_index] |= (1 << val_index)), otherwise, a 0 is written there. Since several of the ATMegas pins are fixed for some of the internal functions (the serial port for example), we have to to make do with the ones that are still available as outputs, hence the seemingly random layout of output pins used: pins C0 to C5, B0 to B2, and D1 to D7.

And there we go, 16 channel PWM on an ATMega 168.

IN-9 Bargraph Nixies – pt. 2

Completely assembled IN-9 bargraph nixie device

Finally the project is sort of finished. The 16 tubes are now mounted in a nice alumin(i)um case. The whole thing is powered by an external 12V power brick and gets its data through a USB port where it presents as a serial interface.

It took me a while and some searching on eBay, but I finally managed to find this nice case which fit the project perfectly. The fittings for the tubes were 3D-printed - each holder holds four tubes.

The completed device in its case

Detail view of the side of the device with the power and USB jacks visible

On the left hand side of the case, there are the connectors for the power supply and the USB, and because the whole thing runs quite hot (drawing up to 70W!), I decided to drill some ventilation holes in the sides of the case, too.

The bargraph nixies are kept upright by two pieces of aluminium L-section which form a tube that is fixed to the top of the unit by two lengths of threaded rod. A piece of plastic foam inside stops the tubes from rattling around when the device is moved.

Aside from the tube holders, there are some more 3D-printed parts on the case: the end caps for the top part, and the standoffs for the circuit bords.

The Electronics

The unit with the case opened, providing a view to the electronics inside

Main Board

Detailed view of the lower circuit board

As mentioned in the previous article, the tubes need a fairly high DC voltage to get going. I’m using a 12-to-140V DC-DC converter I found on eBay. It came as a complete unit, which is fixed to the main board using some pieces of wire. Power to the whole device is provided using an external 12V/80W power brick.

Connectivity to the PC is provided by an FTDI serial interface board which is connected to the microcontroller using an opto-isolator, just in case - should anything go wrong with the high voltage part of the device, it’s less likely to leak through to my PC this way. There’s still a lot of room left on the main board, in case I decide to switch out the FTDI for something else later, maybe an ESP8266 or something similar?

The microcontroller is an ATMega 168A, and all it does is read a string of 16 numbers from the serial port and convert it to 16 PWM signals controlling the tube drivers.

The Driver Board

Detailed view of the nixie tube driver board

The driver board is connected to the main board using a piece of ribbon cable which carries the PWM signal for each tube, and two thicker wires for the connection to the power supply.

The controlling circuit for each tube is a modified version of the emitter follower current sink I showed in my previous post. I originally thought I could drive the transistor directly from a PWM signal, and the capacity of the tube would take care of the smoothing. This turned out not to be true, because the glowing band in the tube would be much longer and glow much dimmer than when the transistor was driven with a constant voltage. To compensate for that, I added an RC lowpass in front of each transistor’s base.

Schematic of the driver circuit for a single tube

The circuit works like this: the tubes are current controlled, i.e. the more current there is flowing through it, the longer the glowing section gets. Therefore we want to control the current through the transistor and by extension through the tube.

Let’s have a look at the pictured circuit. If the input voltage is below the transistor’s forward voltage (about 0.6V), nothing happens. As soon as it rises above 0.6V, the transistor starts conducting, causing the voltage across the 47Ω resistor to rise until it is equal to the input voltage minus the forward voltage. As U = R · I, the current through the resistor is proportional to the voltage. The bulk of this current however does not come from the base of the transistor, but from its collector. In fact, the current through the base is negligible compared to the collector current. Therefore, we have an easy way of controlling the current through the indicator tube.

This circuit is replicated 16 times, once for each tube.

As I built the thing up, I noticed not all the tubes are the same. Some work nicely from the beginning, others take a slightly long warm-up phase during which it is not even possible to get the band to light over the whole length of the tube. After a while they settle down and work nicely, but even then they are not identical. Another issue I encountered was the fact that the band would sometimes appear in the middle instead of rising up from the bottom. This happens often when the current drops too quickly. Using bigger capacitors in the lowpass filters helped, as well as limiting the falloff speed in software. It also helps to not switch off the tubes completely, but keeping a tiny section at the bottom always on.

Originally, my plan was to display some kind of time series data scrolling sideways through the tubes (network traffic for instance), but this is not possible the way the device is now, because the same digital value will produce light bands of (slightly) varying lengths depending on which tube it is sent to. The scrolling effect just doesn’t look nice. Of course I could fine-tune the whole thing now, either in software or by adding a bunch of potentiometers, but the in its current state, it is at least fine for displaying animated patterns.

Here’s a little fire animation:

And here’s the obligatory spectrum analyzer:

Bonus Content

Of course something broke along the way! Well, in fact it happened when I displayed the thing at my local hacker space - the morning after a party, miraculously two of the tubes didn’t work any more. The glass was broken (I suspect some rough handling during asynchronous garbage collection), and now I can show you some pictures of a disassembled IN-9 bargraph nixie tube:

Insides of a broken IN-9 bargraph nixie tube
Insides of a broken IN-9 bargraph nixie tube
Insides of a broken IN-9 bargraph nixie tube

Thanks to LongHairedHacker for some hints regarding the electronics and φ for helping me take the photos.

I don’t have a fancy comment system yet, but if you wanna get in touch, just use Twitter and maybe reply my tweet about this.

IN-9 Bargraph Nixies – pt. 1

Recently I got some Russian ИН-9 / IN-9 “Bargraph Nixie” tubes from eBay. Although I haven’t yet found out what those devices were used for originally, there’s a lot of videos on YouTube where you can see fun things people do with them.

IMG_20160214_105046040

The tubes run off about 140V DC, and the length of the bar is controlled by the current through the tube. It’s zero to about 12mA to sweep the bar across the length of the tube.

I looked into ways to drive them, and found this document: http://www.die-wuestens.de/rd/IN9-2.pdf

To get the required voltage, I use a 140V DC-to-DC converter, which should be powerful enough to drive several of the tubes at the same time. Using the rather simplistic “Current Sink IN-9 Driver” from the PDF as a reference, I did a preliminary test on all of the tubes.

As described in the document, the graph grows longer as you increase the current, and reaches the top of the tube at about 12mA. Increasing the current further will make the bar glow a bit brighter. Here’s the circuit I’m using for now:

IMG_20160214_095616759

I’m using 12V input voltage here, because I also need 12V for the DC-to-DC converter’s input, and the final project should run off a single 12V power supply. There’s a 7805 which regulates the voltage to 5V, and a potentiometer which lets me adjust the current to the base of the transistor (by sweeping the voltage from 0 to 5V). There’s an additional potentiometer from the emitter of the transistor to ground, so I can play around with the exact resistor value – I figured out a value of 210Ω is fine. The third resistor here is just to protect the tube from over current should anything go wrong.

Here’s a video of the circuit in action:

In the pack of tubes I noticed some that would not light up all the way. The bar would get stuck at about 6cm, which is slightly more than half the length of the tube, at 12mA, and increasing the current further would make it brighter, but not longer any more. After some playing around I figured out they would need some kind of “burn-in”: This is where the second potentiometer in my circuit came in handy – I was able to increase the current further by lowering that resistor value. At about 25mA, the bar would start to grow longer again, reaching the top when the current was cranked up to almost 40mA. After this initial procedure, the tubes all respond nicely to a current of 0 to 12mA.

The next step in this project will be to build 16 of the transistor driver circuits, so I can drive all 16 of the tubes I have at the same time. Those will be controlled using PWM from a microcontroller. I have already tested applying the PWM directly to the base of the transistor without any additional low-pass filtering and it seems to work nicely. The microcontroller will take some numbers from a serial interface, and output the values on 16 PWM channels.
